Milling Insert



型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

X

(mm)

Z

(mm)

α

(°)

β

(°)

λ

(°)

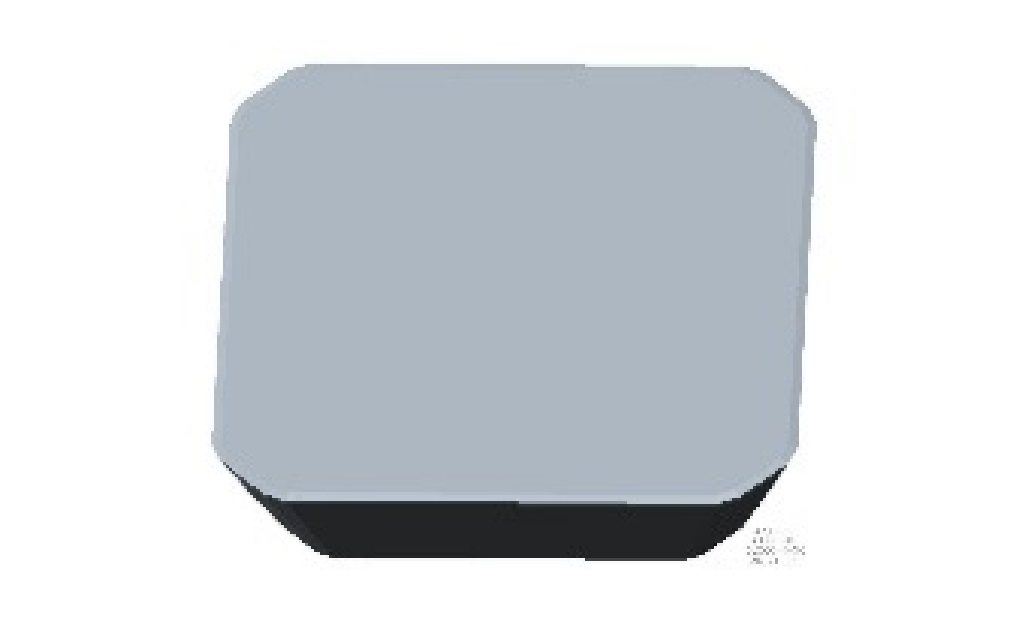

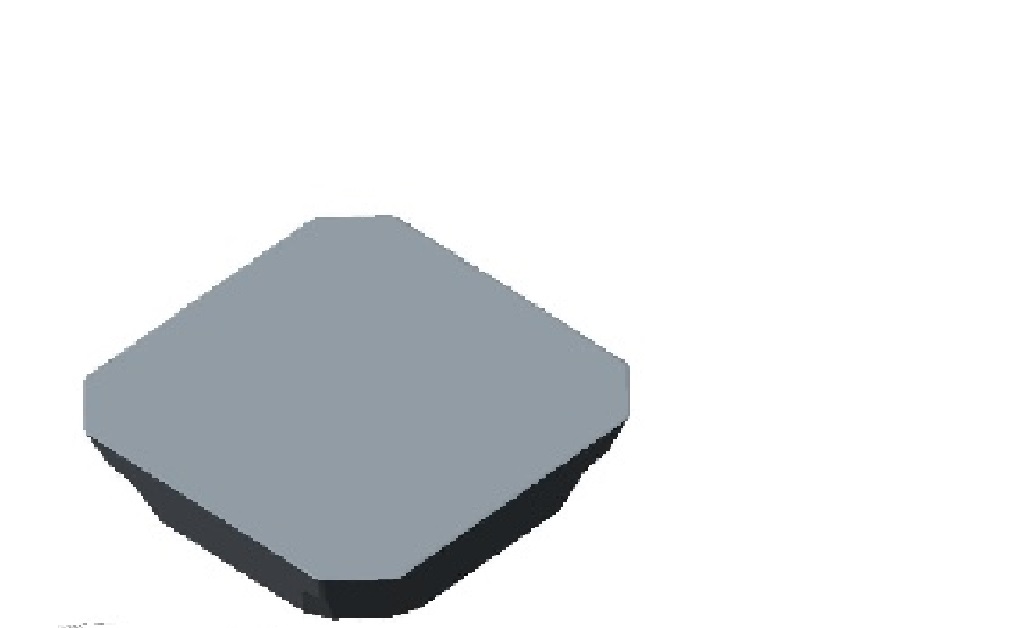

SEEN1203AFTN

12.70

3.18

0.5

1.4

20

25

45

SEEN1203AFFN

SEEN1204AFTN

4.76

SEEN1504AFTN

15.875











型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

X

(mm)

Z

(mm)

α

(°)

β

(°)

λ

(°)

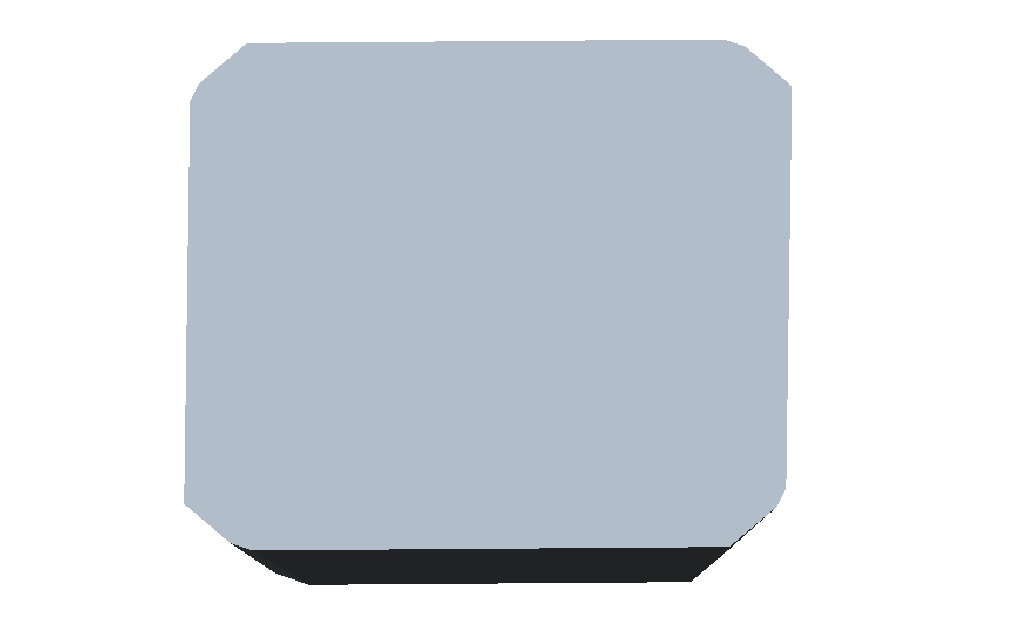

SEEN1203AFTN-1

12.70

3.18

0.5

1.4

20

25

45

SEEN1504AFTN-1

15.875

4.76









型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

X

(mm)

Z

(mm)

α

(°)

β

(°)

λ

(°)

SEEN1203AFTN-2

12.70

3.18

0.5

1.4

20

25

45

SEEN1504AFTN-2

15.875

4.76









型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

X

(mm)

Z

(mm)

α

(°)

β

(°)

λ

(°)

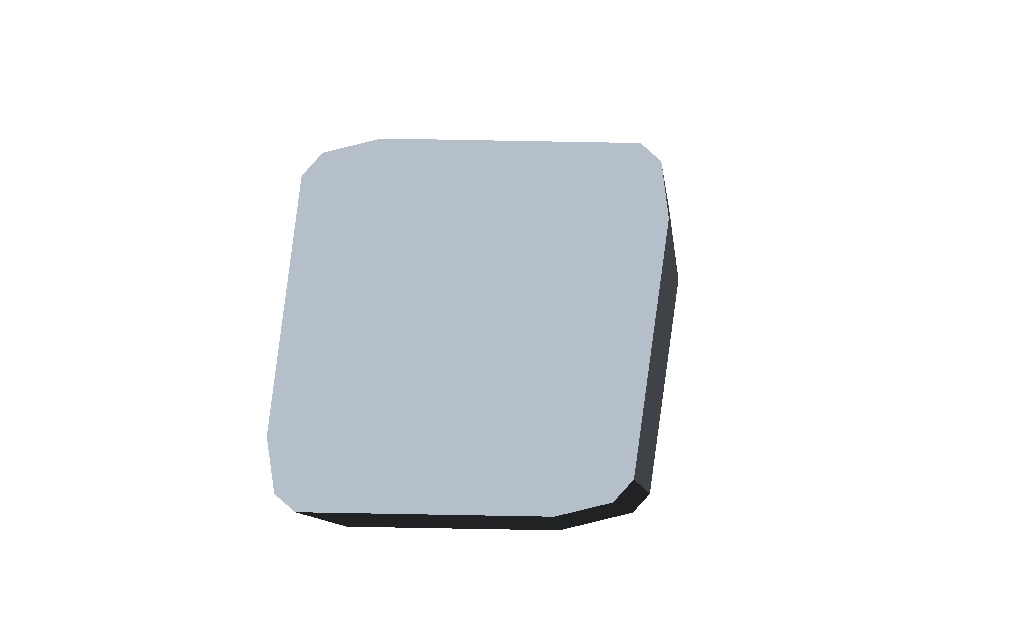

SPCN1203EDTR

12.70

3.18

R1.0

2.0

11

15

15

SPKN1203EDTR

1.0

SPKN1203EDTL

SPKN1203EDFR

1.6

SPKN1504EDTR

15.875

4.76

2.2

SPKN1504EDFR

SPEN1203EESR

12.70

3.18

1.0

1.4

11

20

15

SPCN1203XPTR

12.70

3.18

R1.0

2.0

11

11

25

SPKN1203XPTR

1.0

SPKN1203XPTL

SPKN1203XPFR

SPKN1504XETR

15.875

4.76

20

25

SPCN1904EETR-1

19.05

4.76

0.7

1.2

11

20

15








型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

r

(mm)

α

(°)

SPGN090304

9.525

3.18

0.4

11

SPGN090308

0.8

SPGN120304

12.70

0.4

SPGN120308

0.8

SPGN120404

4.76

0.4

SPGN120408

0.8

SPGN150404

15.875

0.4

SPGN150408

0.8

SPGN150412

1.2











型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

r

(mm)

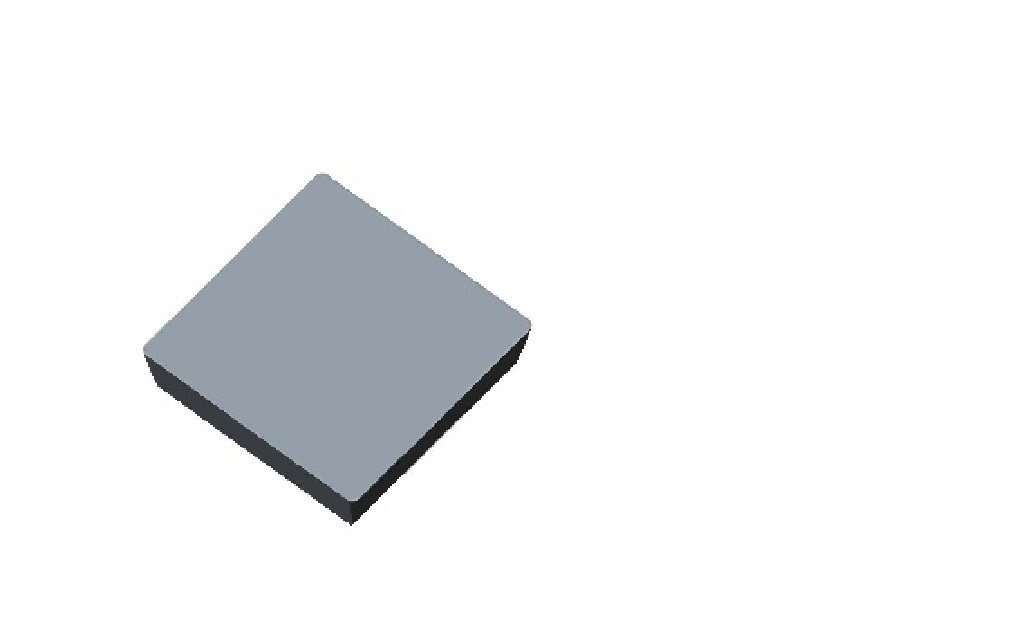

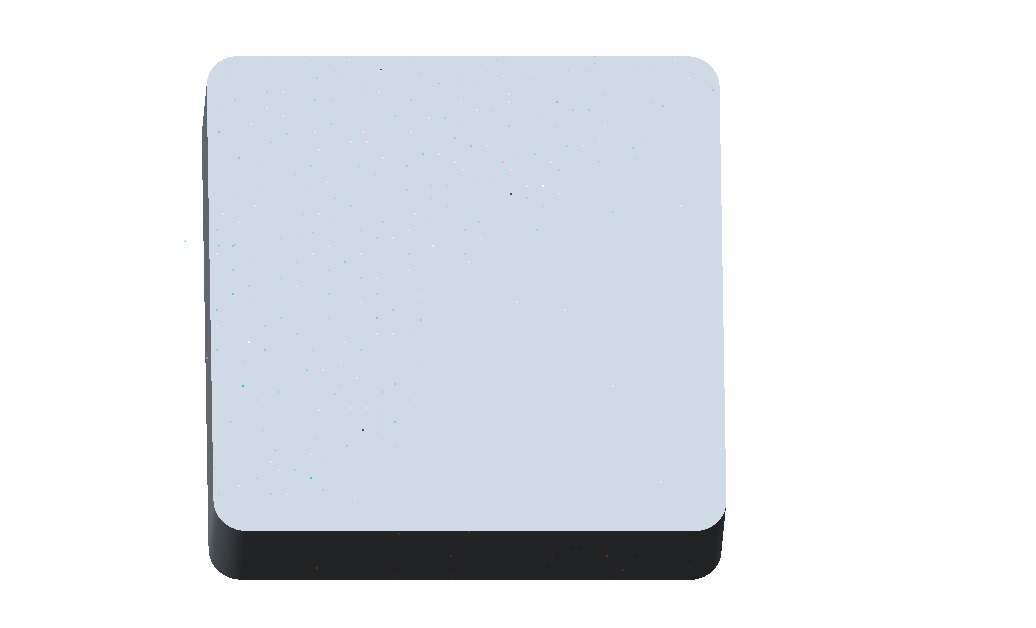

SNGN090304

9.525

3.18

0.4

SNGN090308

0.8

SNGN120304

12.70

0.4

SNGN120308

0.8

SNGN120404

4.76

0.4

SNGN120408

0.8

SNGN150404

15.875

0.4

SNGN150408

0.8

SNGN150412

1.2











型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

X

(mm)

Z

(mm)

α

(°)

β

(°)

λ

(°)

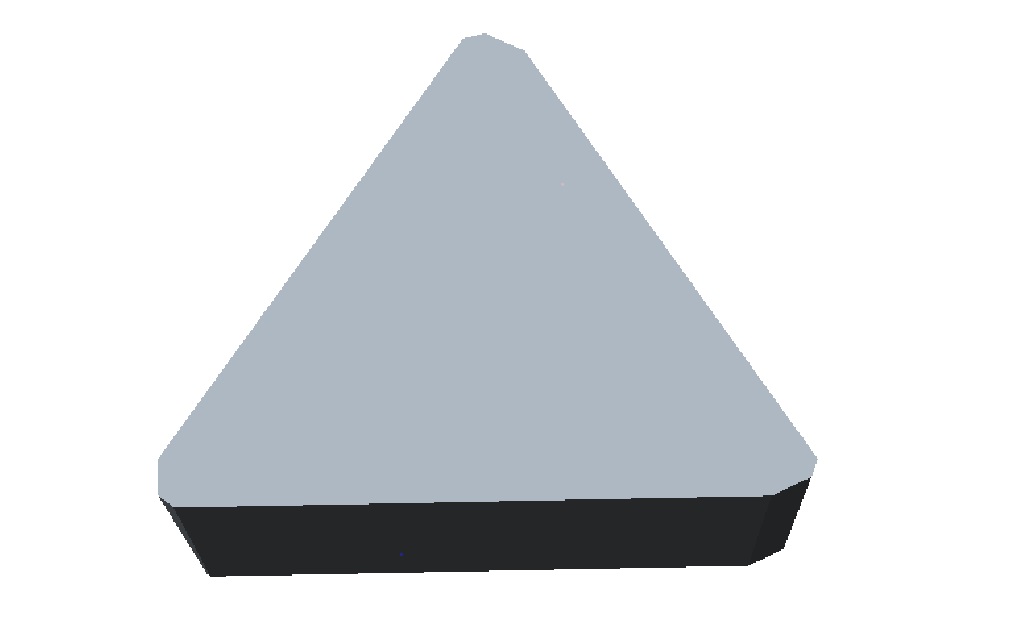

TPKN1603PDTR

9.525

3.18

0.7

1.2

11

15

30

TPKN1603PDFR

TPKN2204PDTR

12.70

4.76

0.7

1.6

TPKN2204PDFR











型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

r

(mm)

α

(°)

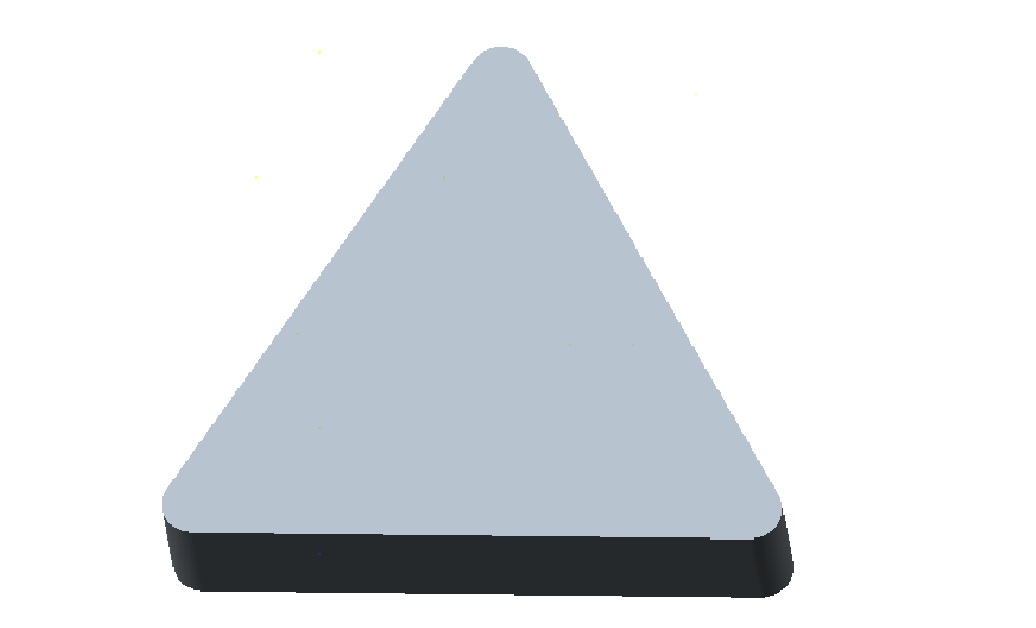

TPGN110302

6.35

3.18

0.2

11

TPGN110304

0.4

TPGN110308

0.8

TPGN160302

9.525

0.2

TPGN160304

0.4

TPGN160308

0.8

TPGN160312

1.2

TPGN160404

4.76

0.4

TPGN160408

0.8

TPGN220404

12.70

0.4

TPGN220408

0.8

TPGN220412

1.2











型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

r

(mm)

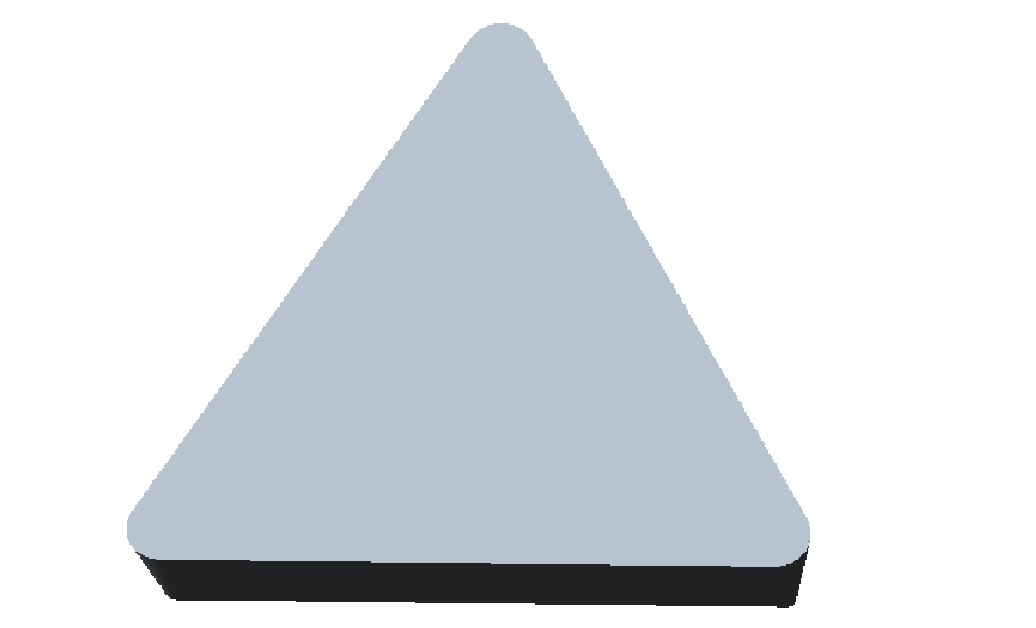

TNGN110304

6.35

3.18

0.4

TNGN110308

0.8

TNGN160304

9.525

0.4

TNGN160308

0.8

TNGN160404

4.76

0.4

TNGN160408

0.8

TNGN160412

1.2

TNGN220404

12.70

0.4

TNGN220408

0.8

TNGN220412

1.2











型号Type

基本尺寸Dimension

I.C

(mm)

S

(mm)

φD

(mm)

α

(°)

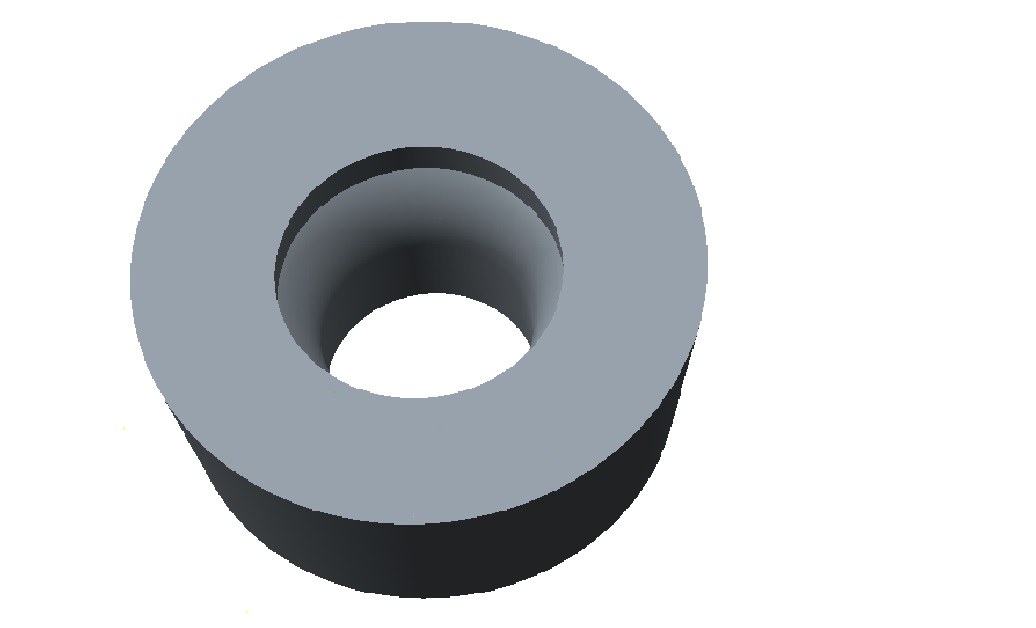

RPMW08T2MOE

8.0

2.78

3.4

11

RPMW08T2MOT

RPMW10T3MOE

10.0

3.97

4.4

RPMW10T3MOT

RPMW1204MOE

12.0

4.76

RPMW1204MOT

RPMW1606MOE

16.0

6.35

5.5

RPMW1606MOT
